How to make everything: 6 Free Dog House Plans

1. An attractive and safe dog house

Planning

Building an attractive and safe dog house doesn't have to be a complicated project. Just keep a few basic principles in mind:

The house should have a floor which sits far enough above ground to prevent water from entering on the rainiest days. Raising the floor will also isolate it from the cold ground in the winter.
Consider your dog's habits. For example, some dogs like to sit on top of their house. If you suspect that this may be the case with your dog, don't put any roll roofing or shingles on the top of the house since they can get hot in the summer sun. Just use an exterior plywood panel, treated with a nontoxic preservative like linseed oil. (The doghouse in this how-to uses a traditional peaked roof design, but could easily be modified to incorporate a slanted roof.)
The illustrated dog house was designed for an average sized dog. Feel free to scale the dimensions up or down as necessary to accommodate your dog. It should be large enough to allow your pet to turn around easily in it. Don't make it too large, since a smaller house is more easily heated by the dog's natural body heat-an important consideration in winter.

2. Build a mini ranch house for your pooch

DIY doghouse instructions

1. Following the diagrams at left, cut and paint plywood sides (A, B) and panels for the rear (C), front (D), floor (E), and roof (F). Sketch out front opening.

2. Cut and screw four 41-inch-long 2-by-4s to the underside of the floor panel so it sits off the ground. Check that floor height matches the sketched front opening’s bottom (41⁄8 in. from base of front panel), then adjust sketch if necessary and cut opening.

3. To make it easy to screw the panels together, reinforce each side-panel corner with one 2-by-2 that will run from the floor to 1⁄2 inch from the top edge. Screw side, front, and back panels to the floor.

4. Center roof above the structure and use screws to attach two painted 46-inch-long 2-by-4 rafters that flank the exterior of the side panels. To keep the roof from sliding to the rear, attach three painted 6-inch-long 2-by-4s that butt against the exterior of the front panel.

5. Referring to the diagram, build and attach with screws (from the inside) the arbor of 2-by-2s. Add the painted lattice trim with panel adhesive and wire brads 6 to 8 inches apart and paint over them.

6. Mask roof edges with metal drip edging, attaching it with roofing nails. Also use roofing nails to attach asphalt shingles, working up from the roof’s bottom end.

3. How to build a log cabin dog house

Step 1: Cut and Notch the Timbers

Cut the landscaping timbers (Image 1) to size.

32 pieces at 42" long (for the back and side walls)
20 pieces at 14" long (for the front)
2 pieces at 60" long (the top side pieces that will hold up the front porch)

Set the table saw to 3 inches wide and run all timbers through so they are all a uniform thickness. Flatten the top, bottom and inner sides so the timbers will fit together easily. The outer side of the timbers can remain curved.

Cut notches into the 42" timbers for the lap joints. Set your radial arm saw to 1-1/4" deep (almost half the thickness of the timber). Make two pencil marks on each end of the timbers -- one 3 inches from the end and the other 6-1/4 inches from the end. In between those two marks is where the notch will be. Slice 1/4" wide increments into the notch area (creating little grooves). Then use a chisel to remove the slices of wood inside the notch area (Image 2).

On the 14" timbers you'll only be making a notch on one side, the unnotched side will be the doorway. Make two pencil marks on one end of the timbers -- one 3 inches from the end and the other 6-1/4 inches from the end (just like above). Then cut out the notches in the same manner as above.

Step 2: Lay the Foundation

Level the site for the house at 72" x 48". Once leveling is done, spread sand over the entire area about 1-inch thick. Lay the pavers down on top of the sand. Be sure there is a slight slope toward the door or front of the doghouse for proper water drainage

Step 3: Build the Walls

Begin placing the logs one level at a time (Image 1). Apply construction adhesive in between each row of timbers (Image 2). Repeat process all the way to the top. Don’t forget that the 10" pieces go in the front of the dog cabin and make up the doorway (Image 3).

Step 4: Assemble the Roof

The materials for the roof consist of 1x wood, 2x4s and 1/2" plywood (Image 1). Determine the angle of the gables for the roof. The angles that you’ll need to cut will be dictated by slope of the roof. The assembly of the roof is accomplished by cutting the 1x wood to length with the appropriate angles cut into the ends. These pieces are used to create the front and back gables of the roof. Then, using the 2x4s as cross supports for the roof, attach them to the gables.

Cover the roof with plywood then skin it as desired. You can use standard roofing shingles. We used standing-seam aluminum panels, which we had custom ordered for our specifications.

Once the roof is assembled and skinned, place it on top of the cabin (Image 2). We just placed it on top so we lift it off to clean inside the house, but you may want to secure the roof to the structure using galvanized screws.

Step 5: Chink the Seams

Apply chinking in between the timbers to seal the house. Chinking is a available in tubes, so you can use a caulk gun for easy application.

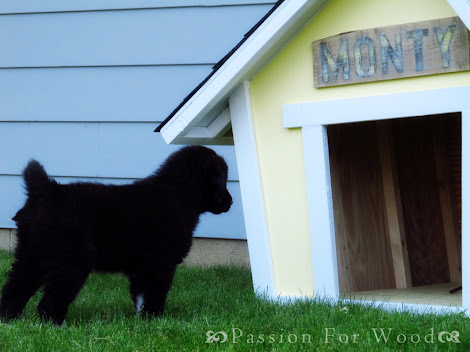

4. Crooked Doghouse Plan

Author Notes:

Sooooo .... my guess is today you are just going to skim what I write and skip to the good stuff ... how to build a Crooked Doghouse!

So I won't keep you - but first you have to do one thing for me.

You have to go read Whitney's post on how she built this doghouse, with step by step photos and details, and you MUST go meet Monty!!!!

Thank you Whitney for working with me on this crooked doghouse. You always amaze me!!!!

Shopping List:

2 ½ sheets ½” exterior plywood
11 – 2x2 @ 8 feet long
4 – 1x3 @ 8 feet long
1 – 1x2 @ 8 feet long
2 ½” PH screws
1” finish nails
Wood glue
2” and 3” wood screws

General Instructions:

Please read through the entire plan and all comments before beginning this project. It is also advisable to review the Getting Started Section. Take all necessary precautions to build safely and smartly. Work on a clean level surface, free of imperfections or debris. Always use straight boards. Check for square after each step. Always predrill holes before attaching with screws. Use glue with finish nails for a stronger hold. Wipe excess glue off bare wood for stained projects, as dried glue will not take stain. Be safe, have fun, and ask for help if you need it. Good luck!

Dimensions:

This is a large sized doghouse.

Cut List:

TRUSSES
6 – 2x2 @ 34 ½” – top end cut at 45 degrees off square LP
6 – 2x2 @ 30 ½” – top end cut at 45 degrees off square LP
4 – 2x2 @ 29” – both ends cut at 10 degrees off square NOT parallel LP
4 – 2x2 @ 23 ¾” – 30 degrees/10 degrees LP (see in plan for more detail)
4 – 2x2 @ 21 3/8” – 40 degrees/10 degrees LP (see in plan for more detail)

1 – ½” plywood @ 39” x 29” (floor)
2 – 2x2 @ 48”
1 – ½” plywood @ 39” x 19 ¼”
1 – ½” plywood @ 39” x 22”
2 – ½” plywood @ 42 3/8” x 40 3/8” (cut shapes from these pieces)

SIDE TRIM
2 – 1x3 @ 37”
2 – 1x2 @ 18 ¾”
2 – 1x2 @ 21 ½”

FRONT/BACK TRIM
2 – 1x3 @ 29 ¾” – both ends cut at 10 degrees off square LP NOT parallel
2 – 1x3 @ 23” – 40 degrees/ 10 degrees LP (see in plan for more details)
2 – 1x3 @ 25 ¼” - 30 degrees/10 degrees LP (see in plan)

DOOR TRIM
1 – 1x3 @ 25 ¾”
1 – 1x3 @ 17 ¾” - one end cut at 5 degrees off square LP
1 – 1x3 @ 19 ¼” – one end cut at 5 degrees off square LP

ROOF
1 – ½” plywood @ 48” x 36”
1 – ½” plywood @ 48” x 32”

*LP stands for longest point measurement

Cutting Instructions:

MARK YOUR BOARDS as you cut!

Step 1:

Build four trusses. Glue and use either countersunk screws or 1 ½” PHs and 2 ½” PH screws. Note – if you do use PHs see step 3 to predrill PHs in ends before assembly.

Step 2 Instructions:

Mark location of trusses on floor plywood. Apply glue to tops of floor plywood. Screw down with 2” screws.

Step 3 Instructions:

Attach the ends as shown in diagram. Use glue.

Step 4 Instructions:

Next, add the side plywood. Use 2” screws and glue.

Step 5 Instructions:

From the square-ish pieces of plywood, mark out the entire cutout. Remember that the back does not get a door cutout. Mark EVERYTHING out while you have something square to work from. Then cut out and attach to front with 2” screws and glue.

Step 6 Instructions:

Next trim out the sides. Use the 1” nails and glue. Measurements shown are to center of studs for easier nailing.

Step 7 Instructions:

Next trim out front and back as shown in diagram.

Step 8 Instructions:

Then trim out the front door. Use glue and 1” finish nails.

Step 9 Instructions:

Add the front and back overhang trusses. Make sure you join the tops with screws and glue.

NOTE: you can add ridge poles between the trusses if you feel the doghouse needs the extra support.

Step 10 Instructions:

And then add the roof plywood!

Step 11:

Don't forget - go visit Whitney at Passion for Wood for construction details!

Preparation Instructions:

Fill all holes with wood filler and let dry. Apply additional coats of wood filler as needed. When wood filler is completely dry, sand the project in the direction of the wood grain with 120 grit sandpaper. Vacuum sanded project to remove sanding residue. Remove all sanding residue on work surfaces as well. Wipe project clean with damp cloth. It is always recommended to apply a test coat on a hidden area or scrap piece to ensure color evenness and adhesion. Use primer or w

- See more at: http://ana-white.com/2012/05/plans/crooked-doghouse#sthash.q9ULFUdh.dpuf

5. Build an insulated A-Frame doghouse for under $75

Materials List:
1 sm. box approx. 1-1/2 roofing nails
1 sm. box approx. 2 1/2" galvanized common nails or screws
1 sm. box approx. 2" galvanized finishing nails
1 pack of asphalt/fiberglass shingles
2 10' sections of 2" drip cap
1 quart exterior paint
2 sheets 7/16" OSB (oriented strand board)
1 sheet blue insulating foamboard

Step 1: Mark and cutout parts

Make a sandwich with the two OSB sheets on the outside and the foamboard inside. Make sure that the edges line up, then fasten the sheets together with 4 nails or screws to prevent shifting. Draw the parts on the top sheet as in the first drawing below. Then nail/screw additional fasteners about every foot just inside the edge of each part to be cut. This will hold the parts together when they are cut. Cut the parts out using the circular saw. Use the sabre saw to cut the corners of the door opening. Cut two equilateral triangles 10" on a side from the door opening scrap. Attach the two right-triangle sections to make the back wall. (I nailed 1x2's to the top and bottom inside edges to hold them together.) For the ridge, carefully cut the 2x4 4' long and 2 5/8" wide. Then use the table saw set at 30 deg. to rip this piece into a diamond shape (see 2nd drawing).

Step 2: Assemble wood parts and paint

Picture of Assemble wood parts and paint

Draw lines at 3" and 4 1/2" from one small end of a 3'x4' roof section. This will be the attachment point for the back wall. Turn the side over and repeat this marking on the other side. Draw lines at 9" and 10 1/2" from the other small end of the 3'x4' side. This will be the attachment point for the front wall. Turn the side over and repeat this on the other side. Mark the other roof section exactly as indicated above. Line up the base of the front and back walls with the marked lines of each roof section. Note that the top inside edges of the roof sections should just touch each other. Screw or nail the sides to the bottom with the 2 1/2" fasteners. Attach the ridge piece to the tops of the left and right roof sections with the 1 1/2" and/or 2 1/2" fasteners. Line the door opening with 1 1/2" wide scrap pieces. Fasten the triangle vent covers on each end backed up by the scrap from the ridge piece using the 1 1/2" fasteners. Paint front and back walls and undersides of roof sections that will be exposed to the weather with 2 coats exterior paint.

Step 3: Attach end-cap and shingles

Attach drip-cap along all edges of the roof with roofing nails. Make a starter coarse of shingles along the bottom of one side of the roof attaching it with roofing nails, then lay the first course of shingles directly over it. the nails should be placed along the tar section of each row and above each tab. Trim shingle material that hangs over the drip-cap. Start the next row of shingles with the tab staggered half-way between the first shingle tabs. Line up the base of the second row of tabs with the top of the tabs on the first row. Repeat this until you get to the top of the roof section. Trim the extra material off. Repeat shingle installation for the other roof section. For the ridge cap, take leftover shingles and cut the tab sections off and attach them on the ridge perpendicular to the ridge line. Overlap them so that the tar strip is just covered. The last shingle will have two nails visible.

Step 4: Optional -- Floor

To add a floor, cut a 3'x3' section of plywood or OSB sandwich and attach it to the bottom of the roof and front/back wall sections.

6. How to Build a Dog House

An insulated dog house made from inexpensive and recycled building materials.

Here is a do-it-yourself dog house that I have dubbed the "Sparky1". It features an insulated floor, roof, and walls, a removable roof for ease of cleaning, a cedar deck with roof, an optional inner wall, and solid construction throughout.

It was made from common construction materials - including recycled cedar boards from an old deck, T1-11 exterior grade plywood, and 2X pine framing lumber. The whole thing cost less than $150. (A similarly constructed commercial dog house could easily go for $500+.)

The doghouse was built as a gift for a needy local family. That's their pooch "Nicky" in the picture. He seemed to be right at home as soon as he climbed into the house for the first time.

Dimensions: The house was designed for a medium sized dog. It is 30" wide, 33" deep, and 37" high. The doorway is 11" wide and 15" high. The front deck measures 18" by 26". The whole thing weighs about 100 pounds.

The house consists of six insulated panels. The side and roof panels are made from 2"x3" framing lumber sandwiched between T1-11 exterior sheathing and sanded plywood interior panels (1/2" for the walls, 1/4" for the roof). For insulation, I used 1" thick foam sheeting. This comes in 4' x 8' sheets and is pretty easy to cut to exact size. The floor, which measures 28-3/4" x 32", consists of a cedar frame with 1/2" plywood on top and foam sheet insulation on the underside.

Cedar was used for the floor frame, the deck, roof cap, and trim boards. It was salvaged from 5/4" decking material that was cleaned and planed down to 4/4". It almost looked too nice to use for a dog house, but at least it wasn't being thrown out or left to rot...

Building the Dog House

Here are the steps for building the dog house:

I found that it worked best to partially build the front and back walls (step 2), build the roof next (step 3) and then come back and finish up the front and back walls. The step 2 page provides details on the construction sequence.

The house can be constructed using standard woodworking tools. I used the following ones: table saw, radial saw, power hand saw, jig saw, router, drill, 1/4 sheet sander. I also used a planer to plane down some old deck boards but that's not an essential tool for the project.

I estimate that the house can be built over a weekend or two - with the aid of the plans provided here. (It took me more like 4 weekends partly because I was designing as I went.)

Figure 1. The Sparky1 Dog House.

Figure 2. Front view of the Sparky1. Note the ventilation holes on top.

Figure 3. Inside the house.

Figure 4. Inside view from the top showing the privacy wall.

Building the Floor

The floor of the dog house is pretty simple: a sheet of 1/2" plywood attached to a frame of decay resistant cedar (recycled from the old deck of course). The floor measures 28-3/4" by 31-3/4". Once the 5/8" walls are attached, this brings the outer dimensions of the dog house to 30" by 33" (not including the corner trim).

constructing the base. It is made from 3/4" x 2-1/2" boards that are screwed or nailed together. For a little extra support, I opted to insert a board in the middle of the frame.

Once the frame is built, the plywood floor is screwed onto it and foam insulation panels are inserted in each of the two halves of the base (Figure 2). To hold the panels in place, I ran duct tape along the edges. Screws inserted into the sides of the frame with the heads projecting out would also get the job done.

Side Walls

At this point, the floor is done and it's time to work on the walls. Start with the two side walls. Cut the outer plywood panels to size (28-3/4" by 23-3/4"), making sure that the length exactly matches the length of the floor.

Create the wall frames using 2" x 2" or 2" x 3" studs. I used 2" x 3" studs for the side walls and 2" x 2" studs for the front and back walls because I had both in stock and wanted to use them up. Just keep in mind that the actual dimensions of construction lumber are a half-inch less than the stated dimensions.

Cut the studs to size to frame the perimeter of the wall panels, keeping 1" exposed on the bottom of each panel for it to overhang the base. Then attach the studs to the panels. For each wall, I used six 2" screws inserted from the inside - to keep the exterior as hole free as possible. Later on, the screws that hold the exterior corner trim in place will also serve as additional attachment points for the walls to the frames.

The side walls are screwed into the floor as shown in Figure 3. To keep from having to use extremely long screws, I counterbored the screw holes an inch or so (that's what I get for using 2" x 3" studs). I also put in some of the screws at an angle (toe-screwed?) which saves you from having to drill counter bores.

By the way, the drill shown in the picture is my favorite. It's a reconditioned Black & Decker that I picked up for about $30 some years ago at a factory outlet. It's lightweight, has a keyless chuck that is easy to grip, and there are no batteries to recharge. What more could one ask for in a drill?

Once both walls are attached to the base, you can go ahead and insert insulation panels inside the frame and then screw on the interior wall panels. The wall panels are made from 1/2" plywood and are sized to fully cover the framework of the wall (should be about 23" x 31-3/4").

Figure 1. The floor.

Figure 2. Bottom view of base and deck.

Figure 3. Attaching the side walls to the floor. Figure 4. Screwing wall to floor.

Figure 5. Both side walls attached to the base.

Cut Outer Wall Panels to Size

Like the side walls, the front and rear walls consist of a 5/8" T1-11 plywood exterior, an insulated inner frame made of 1-1/2" material, and an inner "skin" made from 1/2" plywood. However, there are a lot more angles and a door cutout to contend with. But, that's all part of the fun...

plywood to match the width of the base with side walls attached. This should be about 30". From this piece, cut two pieces that are about 36" long (Figure 1). These two pieces will form the front and rear outer wall panels.

Clamp the two pieces together and layout the cut lines that will form the peak of the dog house (Figure 2). The angled cuts will start at about 23-3/4" from the bottom of the panel - the height of the side walls. Once the lines are drawn, clamp a straight-edge in place that is offset the proper distance for your radial saw and commence cutting. Tip: To make the grooves in the front and back panels line up, clamp the two pieces together back-to-back with exterior sides facing out.

What if you cut the panels and then find that the base of the angled cuts doesn't quite line up with the side walls? (Don't tell anyone, but that happened to me). Well, that's easily solved by clamping the panels in place with the angled cuts in the proper position and then trimming off material at the bottom so the sides and front/back all line up. It's better if the front/back pieces are a bit short vs long because it's easier to rip the rectangular side pieces to size on the table saw than it is to trim the front/back pieces to length with a hand-held radial saw. I hope that makes sense...

Establishing Roof Position

Because the dog house design features a removable roof, the position of the roof must be established before the front and back inner wall frames can be constructed. The idea is that the roof should fit snugly against the top of the wall frames (Figure 3). So, go build the roof and then come back here...

Framing the Walls

Ok, you've built the roof -- right? Now attach the back wall to the side walls with a couple of screws and place the roof on top (Figure 4). Crawl into the house and use a pencil to trace along the edges where the back wall meets the side walls and roof. Now temporarily attach the front wall with a couple of screws and remove the back wall that you just traced. Repeat the tracing process on the front wall and remove that wall when done. You now have the outer framing outline traced on both end walls. (In a perfect world, the outlines would be identical, but what are the chances of that?)

With the wall panels lying flat on the workbench, measure out and cut the framing pieces. Start with the two vertical studs. Cut the upper end at an angle to match the pitch of the roof using the wall panel as a template to mark the cut line. While you're at it, cut the lower end of each upper framing stud at the same angle. Put each vertical stud in position (using the trace marks), mark the bottom cut-off line, and cut to finished length. Put in a few screws to secure the vertical studs to the wall panel. Tip: leave some of the pencil trace line showing to give yourself a little wiggle room. Cut two horizontal studs that that fit snugly between the two upright studs. One is a bottom stud and the other goes near the top of the uprights.

One way to mark the cut lines on the upper end of the top angled studs (the peak) is to put the top stud in position with the previously-cut lower end mated against the vertical stud. Now put a framing square against the bottom of the wall panel with the other end projecting up to bisect the traced peak. Mark the upper stud where the square crosses over it. This is your cut line. Set up your miter saw and cut the stud (maybe just a hair long). Cut the other stud and see how they line up. Trim to final size as necessary. With any luck, the two studs will be the same length and meet perfectly in the middle (not that anyone other than you will ever notice).

At this point, attach all of the back wall framing pieces to the inside face of the T1-11 wall panel. I found that toe-screwing the studs to the panel from the inside (so as not to mar the exterior), with clamps in place to secure the studs, worked pretty well. Insert insulation panels into the upper and lower cavities formed by the framing (Figure 6). Mark and cut the inner plywood panel. You should be able to lay the plywood on top of the framing and trace around the framing to establish the cut lines. Screw the inner panel to the framing and then screw the completed wall assembly to the house. Three screws per side should be more than adequate.

Hold off on attaching the framing for the front wall because you need to create a doorway first.

Creating the Arched Doorway

I could have wimped out and made a rectangular doorway that would have been perfectly adequate and relatively easy to construct. But no, I decided to go for an arched doorway that involved considerably more time and effort to layout and cut. Something about the house demanded the classic Snoopy arch...

I made the doorway 11 inches wide by 15 inches high. The bottom of the doorway lines up with the top of the bottom stud and the left side lines up with the inside edge of the leftmost vertical stud (when viewed from the front). With the framing studs temporarily screwed in place, measure out and mark the cut lines for the top and right side. Also trace along the studs to mark the bottom and left edge of the doorway.

To create the arch, you need to layout one half of a circle that has a radius of 5-1/2" (half the width of the doorway). Mark a point that is 5-1/2" from the top layout line and 5-1/2" from one of the side layout lines. Using this as the pivot point, use a compass to draw the arch. I didn't have a compass of sufficient size, so I made a quick and dirty one from a piece of scrap wood with two holes drilled in it that were 5-1/2" apart: one for the pivot point (using a nail) and one for the pencil point (Figure 7).

With the outline of the doorway drawn, remove the framing pieces and cut out the doorway. You'll probably want to use the scroll saw for this operation. It's worth a little extra diligence here because the doorway will be one of the most visible features of the house; the interior doorway cut-outs will be much less noticeable. You don't want your dog complaining about sloppy craftsmanship, do you?

Reattach the framing studs to the front wall, including the horizontal stud that goes a few inches above the doorway. Measure, cut and attach a vertical stud to the other side of the doorway. Cut a 2X8 header that spans the width of the doorway between the studs. With this board in position firmly against the upper horizontal stud, trace the arch onto it from the front side. Remove the board and cut out the arch using a band saw or scroll saw. You now have all the front wall framing and doorway pieces (Figure 8).

Note: If I were to do it again, I would probably make this arch framing piece a little longer to avoid having to deal with little slivers of wood on the bottom that could possible snap off or form splinters. This would involve cutting out a section from each of the vertical studs and extending the arch framing piece to fill in the gaps.

Cut out the inner plywood panel for the front wall (again using the framing as a template) and clamp it in position. Reach in from the front and trace the outline of the doorway on the inner panel. Cut out the doorway on the inner panel with your scroll saw. Finish up the front wall by inserting insulation (Figure 9) and screwing on the inner wall panel. It's also a good idea to sand all of the exterior and interior edges of the doorway.

Screw the front wall to the side walls and the base. At this point, the basic structure of the dog house is complete.

Vent Holes

To improve the ventilation of the dog house, I drilled a couple 1" vent holes in the front wall just below the roof peak. These were fairly deep holes - about 2-5/8" - because they had to go through the inner and outer wall panels plus the wall framing. To minimize splintering of the plywood, I used a sharp Forstner bit and drilled from both the outside and inside of the walls.

Corner Trim

Corner trim is optional but it definitely spruces up the appearance of the house by covering the plywood joints where the walls meet. For each corner, I used two pieces of 3/4" thick cedar - one piece 2-1/4" wide and the other 3" (the narrower piece butts up against the 3" piece to form 3" all around). The top of the front and rear facing trim boards are cut an angle to match the pitch of the roof. The side facing trim boards are shorter as they only need to be as long as the height of the side walls (about 24").

Figure 1. Cutting front/rear panels to rough length.

Figure 2. Ready to create the peak.

Figure 3. Exploded view of roof and rear wall frame.

Figure 4. Side view of roof with front wall removed.

Figure 5. Close-up view

Figure 6. Back wall with framing and insulation in place.

Ridge Pole and Rafters

With the front and rear outer walls temporarily attached to the side walls with a couple of screws or pipe clamps, cut a ridge board for the roof that spans the distance between the front/rear walls. Position the ridge board so that is centered at the peak and hold in place with a pipe clamp (Figure 1). Now you can layout and cut the rafters.

establish the top angle for the rafters, clamp a scrap piece of 2x3 material to the inside of the outer wall and with a square held against the ridge board, mark the cut line on the wood scrap (Figure 2). Use the same approach to layout the bottom angle, this time placing the square against the side wall. Also measure the distance from the outside of the side wall to the top edge of the ridge -- this represents the length of the top edge of the rafter. It should be about 18" more or less.

With the rafter angles and length established, cut out the rafters with your miter saw. I recommend first cutting the bottom angle on all the rafters. Using one of these pieces as a template, measure up from the cut end and mark the location of the top cut. Then set the miter saw for the top angle and cut the template slightly long. Gradually sneak up on the layout line until the rafter fits snugly in place. (If you've done things correctly, the top and bottom cut lines will form a right angle when a square is placed against them). Finally, set a stop for your saw and cut the rest of the end rafters to final length (total of 4).

Clamp the end rafters in place as shown in Figure 3 and screw the top of each rafter to the ridge beam. You may want to drill a countersink so as not to risk splitting the material. Also secure each end rafter to the wall using 1-2 screws inserted from the outer wall. These will hold the structure in place for the rest of the assembly (the clamps would be in the way when the roof panels are attached).

The two inner rafters are cut slightly shorter than the end rafters because they butt up against the concealed fascia boards that run along the base of the roof frame. These boards enhance the structural integrity of the removable roof. With the end rafters clamped in place, cut two fascia boards that span the distance between the rafters. Position each fascia so that it rests against the top of the side wall and is in the same plane as the rafters (See the pics). Then measure the distance between the top edge of the fascia and the ridge beam -- this will define the length of the inner rafters. Mark and cut the inner rafters.

At this point, all of the roof framework should be cut to size. Toe screw the end of each fascia into the end rafters. Do the same for the inner rafters. A single screw at each joint will suffice for now -- additional screws can be added later when the frame is removed to install the insulation panels.

You'll notice in the photos that the inner rafters are not actually in the middle of the roof. This is because I used two pieces of plywood for one side of the roof and positioned the inner rafter to line up with the point where the two pieces met. For the sake of symmetry, I also offset the other inside rafter.

Roof Panels and Insulation

The next step is to create the two exterior roof panels. Each is 22" wide by 39" long, which allows for about 3" of overhang all around. It's best if each panel is a single piece of plywood. However, I ended up using two pieces for one side because I wanted the grooves in the T1-11 plywood to all line up and run vertically, and I didn't have enough large pieces left - with the proper groove orientation - to use a single piece for each side. If you plan to cover the roof with shingles, it should be much easier to find two whole pieces of plywood since you won't care if the grooves line up or not.

Alright, enough rambling... Do what you must to come up with two roof panels of sufficient size. Rip each to rough width and cut to finished length. The ends where the two panels meet at the peak of the roof should be cut at an angle so the panels fit tightly together. This angle is the same as the top angle of the roof rafters. Transfer this angle to your table saw and cut two pieces of scrap wood to see how they line up. Adjust as necessary and when the angle is correct, go ahead and cut each roof panel.

Position the roof panels on top of the roof frame. When you're satisfied that they meet tightly at the peak and overhang evenly on the front/back, remove one of the panels and clamp the other in place as shown in Figure 4. (It helps to have an assistant for this operation). Then insert a few screws into the clamped panel to attach it to the frame. Remove the clamp and attach the other roof panel in a similar manner.

Now it's time to work on the interior roof panels. For these, I used some 1/4" thick material that I found on the woodpile. Remove one of the end walls as shown in Figure 5 and measure the distance from the peak to the side wall, with the tape measure held against the bottom edge of the roof rafter. This distance represents the width of the interior panels. (Actually, one panel will be slightly narrower than the other - by the width of the plywood - because it will butt up against the other panel). Measure the panel length also - it should be the same as the length of the side wall panels. Cut the two panels to size and check their fit. Don't get too mental if the panels are a little undersize - only the dog will ever see it.

Remove any screws securing the roof to the walls and with the help of your able-bodied but underpaid assistant, pick up the roof and place it upside down on the workbench. Cut out four pieces of foam insulation panel to fit inside the roof frame and tape in place (Figure 7). Then screw on the interior roof panels. This is also a good time to insert additional screws to better attach the outer roof panel to the frame. I recommend toe-screwing them from the inside rather than putting holes into the top of the roof.

Ridge Cap

The last step is to attach a ridge cap. It not only enhances the appearance of the house but helps to keep water from getting into the roof panel joint and really stiffens up the roof structure. I made a cap from 3/4" x 3-1/2" cedar with a piece of 6" wide flashing underneath it (Figures 9-12). To reduce the opportunity for water to get into the joint, I ripped one edge of each cap piece at a 16.5 degree angle (to match the pitch of the roof) and then put in 3-4 screws to attach the pieces to each other. The completed cap is then screwed onto the roof with a half dozen screws or so.

Figure 1. Temporarily attaching ridge pole.

Figure 2. Test fitting rafters.

Figure 3. Roof frame depicting end rafters, inner rafter, concealed fascia, and ridge.

Figure 4. Close-up view of roof joint.

Figure 5. Side view of roof with front wall removed.

Figure 6. Underside of roof with insulation panels in place.

Figure 7. Close-up view of ridge beam and rafters.

Figure 8. Roof flashing.

Building a Covered Deck

A covered deck like the one shown here is a nice touch for a dog house. It provides a place for your dog to hang out and see what's going on without lying in flea-infested dirt or being entirely exposed to the sun. It also adds a certain stateliness to the dog house -- it elevates it from being just a box with a hole in it to a stylish abode that any self-respecting dog will appreciate.

framing. For the roof, I used a piece of left-over T1-11 plywood, hung at a 12 degree slope. The whole thing - deck and roof - only weighs about 20 pounds.

Begin by building a frame for the deck using 1-3/4" wide stock. As shown in Figure 2, this is simply a box that is screwed onto the front of the house. It measures 17-1/2" by 25-1/2" and is centered between the front corner trim. The bottom of the deck frame lines up with the bottom of the house frame.

The front roof supports are made from two 1-1/2" wide boards that are screwed together. For now, cut these boards to rough length (23"); hold off on attaching them until the roof position is established. Same goes for the decking.

Create a support header for attaching the roof to the house. This board is 1-1/2" wide by 25-1/2" long. Cut a bevel on top of the board to match the pitch of the roof (I went with 12 degrees). Cut two such pieces - the other will be used for the front roof frame. Then create the two side pieces of the roof frame, cutting the ends at the same angle as the roof pitch. I'll leave it as a little carpentry challenge to you to figure out the proper length of the side pieces so that the front of the roof frame lines up with the front of the deck frame.

Screw the roof frame together and attach it to the house with a few screws; I positioned it as high as possible without getting in the way of the main roof (don't forget to account for the thickness of the T1-11 plywood on top). Place the house on its side so you don't have to support the front of the deck. Measure and cut the two vertical roof supports (cutting the top at the same 12 degree angle) and screw to the front corners of the deck and roof frames (Figure 4).

Cut the deck boards to size and screw in place. I allowed about 1/4" of overhang on the front and sides. Of course, I had to round the ends with a router to make it look legit. Finally, cut the T1-11 roof panel to size (18" x 26") and screw in place. Voila, a covered deck!

Note: if you make the deck roof a little larger and with a little less pitch, it can double as a loft for your dog to observe the world around him from a higher vantage point.

Figure 1. Your basic dog house with covered deck.

Figure 2. Underside of house and deck frame.

Figure 3. New life for recycled deck boards.
